CanopyFlasher

Forward facing Visual Awareness Light system.

Six extremely bright red or white CREE™ LEDs (±4000-4500 Lumen!) built into an elegant, low profile Space Grey (Nextel like) enclosure, mounted in the front of the canopy. Out of sight for you, but not for others.

New improved lens-array, focusing more light to the most dangerous angle.

AeroFlash is well visible at distances of over 3500m. Two status LEDs instantly show you which operating mode the system is in: AUTO or ON.

AeroFlash features over-temperature protection sensors built-in, with cooling heatsinks.

Suitable for many gliders with canopies opening vertically or sideways.

White or red LEDs? What is better?

After many hours of flight testing, our conclusion is that red LEDs offer the best all-round visibility in the most dangerous situations. A RED flash in a hazy/cloudy sky or white snowy background, with a white glider clearly stands out best, just like same way as one would put red warning markings on their wings. Red light warns in the most unfavourable situations and means danger.
White LEDs however are better visible on a green/brown background, but it may be likely that you would have spotted the glider already. White LEDs have the benefit that they have a slightly increased brightness compared to red…

Your choice…

Extremely smart, yet simple. Activate and forget.

Suitable for aeroclubs. Activate and forget.

An easy to understand and comprehensive installation & operation manual is available.

Update the firmware through your PC or Mac with our AeroFlash Tool.

Connectivity - RJ12 and External Flasher Control

One RJ12 IGC-compatible port for plug-and-fly connection of your Flarm. Need a splitter? No problem, we included one for free.

Add a FuselageFlasher in the future? No problem, Nexus MINI is easily expandable.

Aluminium Enclosure

Nexus MINI – half the size of the first generation Nexus. The brain of AeroFlash is built-in to an extremely compact but sturdy aluminium enclosure, shielding potential RF-interference. Update and configure Nexus through mini-USB with your PC or Mac.

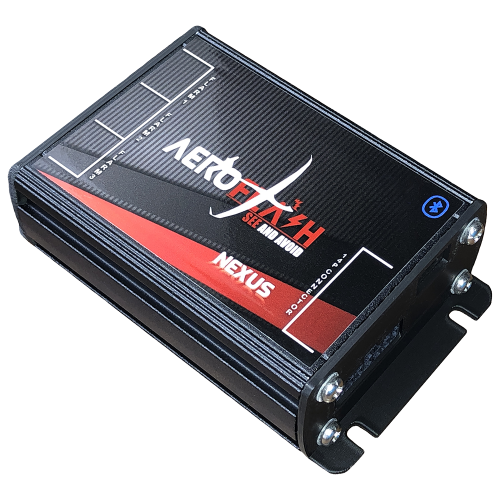

Nexus MINI

Compact, light, smart. Flarm-to-Flash interface.

The most advanced flash-controller on the market. Guaranteed.

Flarm Compatible - AUTO mode

Connect Nexus to your Flarm to have fully automatic flash activation and power-saving when you need it. Read more about the Flarm and AUTO-logic in the FAQ.

Always ON

You control when the AeroFlash system is active with “ON-mode”. Potentially dangerous situation, or the whole flight? Switch it ON!

Hazard mode

Maximum light output for extremely demanding situations which require best visibility. You enable harzard mode with 3 simple flicks of the switch, which generates the highest Flarm warning level (continuous rapid flashing) for 5 minutes.

Simply brilliant. No compromise.

Nexus PRO

AeroFlash PLUS value pack

Smart, powerful, complete. Flarm-to-Flash interface. Available as value package: AeroFlash PLUS.

The most advanced flash-controller on the market. Guaranteed.

Flarm Compatible - AUTO mode

Connect Nexus to your Flarm to have fully automatic flash activation and power-saving when you need it. Read more about the Flarm and AUTO-logic in the FAQ.

Always ON

You control when the AeroFlash system is active with “ON-mode”. Potentially dangerous situation, or the whole flight? Switch it ON!

Hazard mode

Maximum light output for extremely demanding situations which require best visibility. You enable harzard mode with 3 simple flicks of the switch, which generates the highest Flarm warning level (continuous rapid flashing) for 5 minutes.

Simply brilliant. No compromise.

Connectivity - RJ12 and External Flasher Control

One RJ12 IGC-compatible port for plug-and-fly connection of your Flarm. Need a splitter? No problem, we included one for free.

Nexus PRO powers one CanopyFlasher and one FuselageFlasher. It can also very easily be connected to additional Flashers for future expansion.

Aluminium Enclosure

The brain of AeroFlash is built-in to an extremely compact but sturdy aluminium enclosure, shielding potential RF-interference. Update and configure Nexus through mini-USB with your PC or Mac.

FuselageFlasher

Elegant and aerodynamic. 360º. On top, bottom, or both.

Measuring at 110mm long, 15mm wide and only 11mm high, the AeroFlash FuselageFlasher is extremely elegant and streamlined, made out of a super clear UV-resistant epoxy. Its small size does not say much about its ability: with 16, yes sixteen extremely bright red or white CREE™ LEDs (±7500-8500 Lumen!), the strobe is very well visible at distances up to 3km.

Mount it on top of the fuselage, on the bottom, or BOTH! Connect up to two FuselageFlashers to Nexus. No compromise. Only one small hole of 4mm is required for the cable. Mount it on a wheel door, or on an engine bay door for the least amount impact on the airframe, and maximum visibility.

FuselageFlasher is part of AeroFlash PLUS value pack.

Only need a (stand-alone) FuselageFlasher – without CanopyFlasher? Have a look at Fusion:

fuseflash-side-1 copy

Rudolph

NoseFlasher

Designed for Ka-6, Ka-8 and ASK13 gliders.

Measuring at 60mm diameter (hole diameter 32mm), 7mm high, the AeroFlash RUDOLPH NoseFlasher is extremely elegant and streamlined and fits around the nose-hole of the Ka6, Ka8 and ASK13 gliders, that don’t really have a good solution to install a CanopyFlasher. Just like the FuselageFlasher, it’s made out of a super clear UV-resistant epoxy. Its small size does not say much about its ability: with 16, yes sixteen extremely bright red or white CREE™ LEDs (±7500-8500 Lumen!), the strobe is very well visible at distances up to 3km.

Only one small hole of 4mm is required for the cable.

Fusion

Power supply for a FuselageFlasher

fusion-back-1000

Power Supply and Data Processing

A power supply for a FuselageFlasher.

Built in a sturdy aluminium RF-shielded enclosure.

Overheat protection built-in.

Easy to install. No soldering required.

Super smart strobe-controller.

Available in multiple variants, always suitable for your requirement.

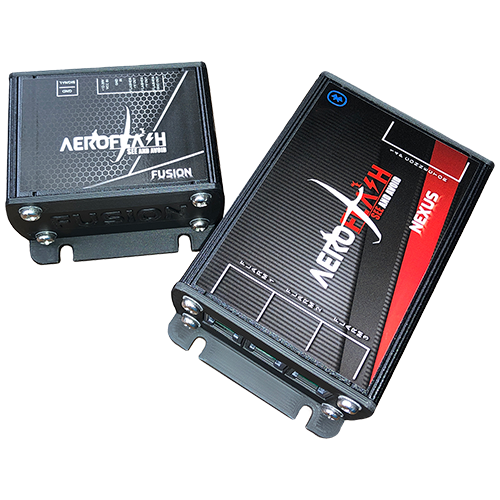

Nexus’ little brother, Fusion, is the heart for the control of the FuselageFlasher.

Fusion systems are available in six variants, suitable for every installation. Combine it with a CanopyFlasher/Nexus system? Would you like Flarm input? Completely stand-alone?

Contact us for advice!

Always a perfect solution for your individual installation.

fusion-duo1-1000

Easy Connectivity

Easy to connect screw-on terminals to connect the three power wires from each FuselageFlasher.

Easy connection to a Nexus system.

Easily connect a second FuselageFlasher with Fusion DUO.

Stand-alone LITE or FLARM versions available.

Single-FuselageFlasher Fusion systems are available in three different variants, suitable for every installation:

Fusion – connectable to a CanopyFlasher / Nexus system.

Fusion LITE – stand-alone version. Flashes continuously with 3-flashes per 1,5 second.

Fusion FLARM – connectable to Flarm (1x RJ12 IGC port). Switchable enhanced AUTO-, Always-ON or HAZARD-Mode logic.

Double (DUO)-FuselageFlasher Fusion systems are available in three different variants, suitable for every installation:

Fusion DUO – connectable to a CanopyFlasher / Nexus system. Connects two FuselageFlashers to one single powerbox.

Fusion DUO LITE – stand-alone version. Flashes continuously with 3-flashes per 1 to 2,5 seconds (configurable). Connects up to two FuselageFlashers to one single powerbox.

Fusion DUO FLARM – connectable to Flarm (1x RJ12 IGC port). Switchable enhanced AUTO-, Always-ON or HAZARD-Mode logic. Connects up to two FuselageFlashers to one single powerbox.

Convinced?

Order now!

The AeroFlash systems are available for sale in our shop, or through one of your preferred dealers.

If your glider type is not listed in the compatibility yet, please contact us.

Do you have any questions?

Don’t hesitate to contact us, or read the frequently asked questions section for more information.
